Double Layer - Improved Sheet Support Paper Machine Fabric - Coarse 8/16 Shed DLA47816SM-420CFM with Additional CD Yarn for Superior Fiber Retention

  • 1
  • 2

Pattern description : 8/16 Shed

Basis Weight (g/m²) : 850

CMD Yarns Top : 0.20mm, 0.27mm 22.6 /cm PET

Air Permeability : 360 CFM @ 125 Pa

Void Volume : 811 ml/m² (55.9%)

Caliper (mm) New : 1.450

Fiber Support Index : 79

Paper Side Open Area : /

CMD Yarns Bottom : 0.50mm 11.3 /cm PET/PA

Fiber Support Point : 170 /cm²

Drainage Index : 22.2

Brand Name : ATMC

MOQ : 1pc

Price : inquiry

Payment Terms : L/C,D/A,D/P,T/T

Packaging Details : Standard export ply-wood case

Caliper (mm) Critical : 0.970

Break Strength : ≥1100 N/cm

Structure : 2.5 Layer

Fabric Color : Light Green, Light Blue

MD Yarns Top : 0.27mm 40.0 /cm PET

MD Yarns Bottom : /

Elongation(50N/cm) : ≤0.40%

Contact Now

KRAFT DLA47816SM-420CFM with Additional CD Yarn for Superior Fiber Retention and Drainage in Board Production
Engineered for demanding paper and board production, the KRAFT DLA47816SM is a double-layer forming fabric with an 8/16 shed design. Its key feature is an added CD yarn that significantly enhances fiber support and sheet quality. This configuration provides outstanding drainage alongside excellent life potential, thanks to the robust, large-diameter yarns employed on the wear side, making it ideal for packaging and wrapping paper grades.
Key Features
  • Enhanced Wear Side Design: 16-shed wear side weave incorporates an extra-long CD crimp, specifically engineered to accommodate large-diameter CD yarns
  • Maximized Fabric Life: Increased diameter and mass of the wear side yarns significantly boost abrasion resistance, extending operational lifespan
Product Parameters
Product Name Forming Fabric KRAFT DLA47816SM
Material Polyester monofilament
Function Paper Machine
Application Light GSM Kraft Paper, Wrapping Paper, etc.
Technical 1/1.5/2/2.5/3 layers forming fabric
Width Customized
Weight Customized
Fabric Color Customized
Product Images
Double Layer - Improved Sheet Support Paper Machine Fabric - Coarse 8/16 Shed DLA47816SM-420CFM with Additional CD Yarn for Superior Fiber Retention
Top Side View
Double Layer - Improved Sheet Support Paper Machine Fabric - Coarse 8/16 Shed DLA47816SM-420CFM with Additional CD Yarn for Superior Fiber Retention
Bottom Side View

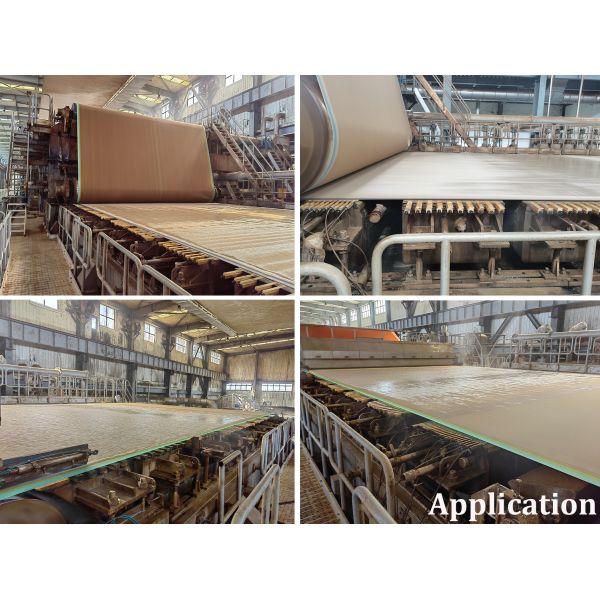

Applications
Wrapping and Packing Papers, Board Grades
Double Layer - Improved Sheet Support Paper Machine Fabric - Coarse 8/16 Shed DLA47816SM-420CFM with Additional CD Yarn for Superior Fiber Retention
Double Layer - Improved Sheet Support Paper Machine Fabric - Coarse 8/16 Shed DLA47816SM-420CFM with Additional CD Yarn for Superior Fiber Retention
